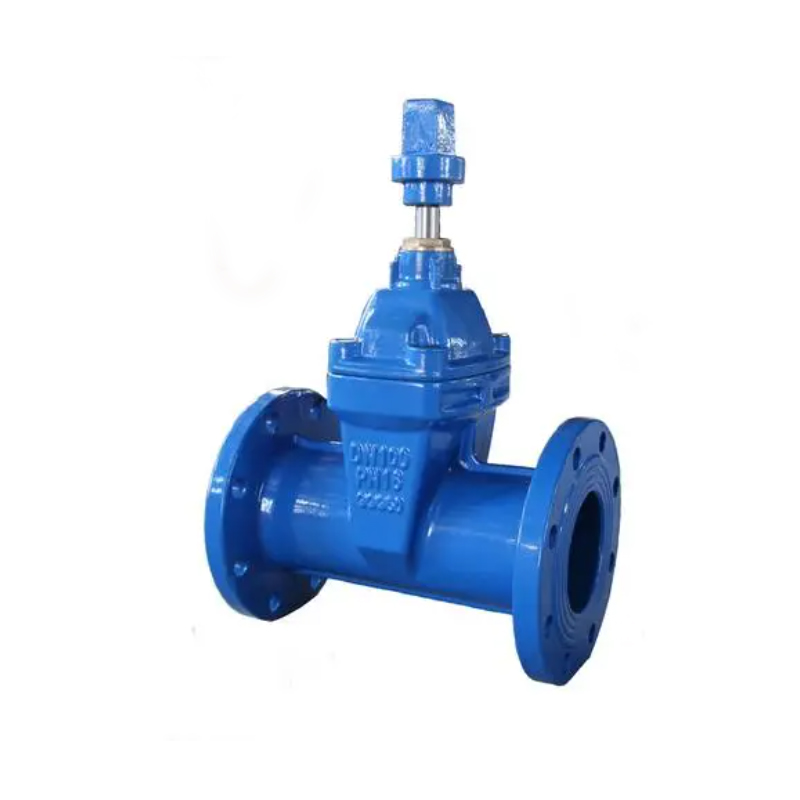

DIN3352 F5 Resilient seated gate valve
The resilient seated gate valve is characterized by its resilient seating, which refers to the use of a rubber or elastomer material
around the metal gate. This allows for a tight sealing when the valve is closed, preventing any leakage.
Resilient seated gate valves are typically operated using a handwheel or gear mechanism. The operation of the valve is simple,
with the gate moving up
Design Standard:DIN3352
Face to face dimensions: DIN3202 F5
Flange:DIN2532.2533
Work Temperature: 0-80°C
Working Pressure:PN10,PN16
Size:DN50-DN600
