category:Air valve
product specification：DN50-DN300
port entrance：Tianjin Port,Qingdao port,others
Expedition：
place of origin：china
supply capacity：
release time：2023-01-08
number of visits：506

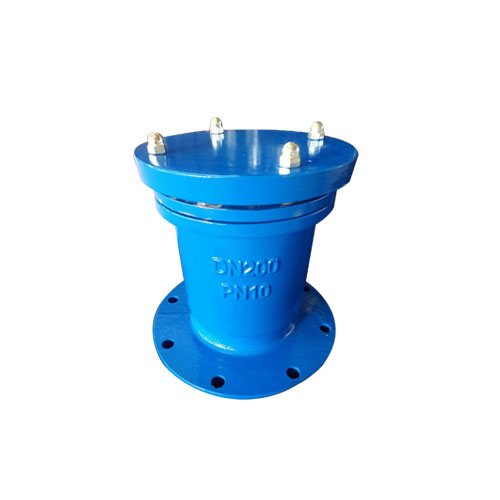

Flange Air Release Valve
flange air release valve,as known as a flanged air release valve or flanged vent valve, is a type of valve used in piping systems to release air
or gas from the system and prevent the accumulation of air pockets. It is commonly employed in applications such as water supply systems,
sewage systems, and industrial pipelines.
The flange air release valve is designed with a valve body that includes a flanged connection to attach it securely to the pipeline. It also features
a float-operated mechanism inside the valve body, which automatically opens or closes based on the presence or absence
Standard: DIN3357/API 6D/ JIS 7S-48/MSS SP-72
Working pressure: 10bar/16bar
Testing pressure:
Shell: 15bar/24bar
Seal: 11bar/17.6bar
Type: Full bore, flanged end
Material: Ductile iron GGG50
ball: 2CR13 or SS 304
